HMI Modules
The following Human Machine Interface (HMI) modules can be used with the motor management system.
-
The LTMCU operator control unit: Control and monitoring of a 1 to 1 LTMR controller.
-
The LTMCUF operator control unit (LTMCU with Fast Device Replacement (FDR) on HMI):
-
Backup and store the configuration and custom logic of the LTMR controller.
-
Facilitate the operator task when replacing a drawer in an environment of high continuity of service without using a computer.
-

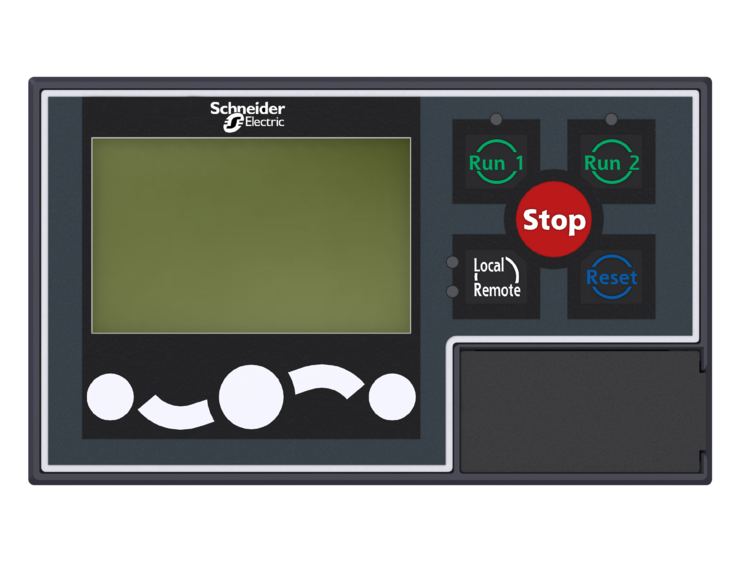

LTMCU Module
The LTMCU Compact Display provides the following functions:
-
Configure the parameters
-
Display information
-
Monitor the alarms and detected faults
-
Local control of the motor via the local control interface (keys can be customized)
-
Three different languages can be loaded into the LTMCU controller at the same time: English, French, Spanish are the defaults.
A language download utility (LangTool), together with all the other languages, are available on the website www.schneider-electric.com.
This tool allows the languages present in the LTMCU control unit to be adapted.
The LTMCU HMI control unit has an additional front panel RJ45 port, protected by a flexible cover.

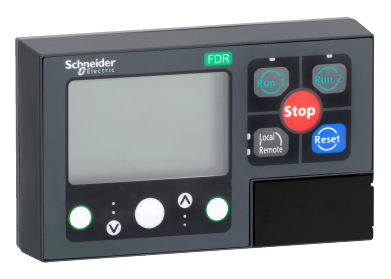

LTMCUF (LTMCU with FRD on HMI) Module
The LTMCUF Compact Display enables:
-
LTMR monitoring and settings
-
LTMR configuration backup and restoration
-
Copy and paste of configuration at commissioning
Two applications have been predefined for the TeSys T controller. Depending on the application loaded, the HMI terminal makes it possible to:
-
Configure and monitor a motor starter (LTM_1T1_V1.dop)
-
Monitor and modify certain parameters up to 8 motor starters (LTM_1T8_X_V1.dop)
