Installation of the Auxiliary Contact Modules

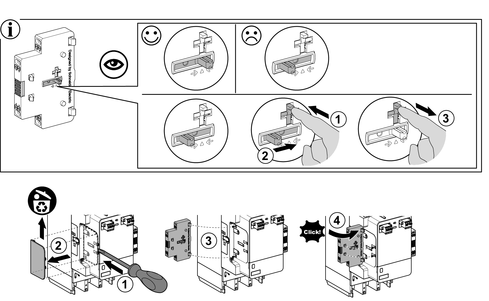

Make sure that the slider on the auxiliary contact modules should be on the right side before installation.
  1. Place the screwdriver on the side of the plastic cover.
  2. Push the cover inwards to remove the cover.
  3. Place the auxiliary contact modules on the contactor at the fixing holes.
  4. Push to lock automatically with a click.
