Status Monitoring

PowerTag Control 2DI 230 V Module

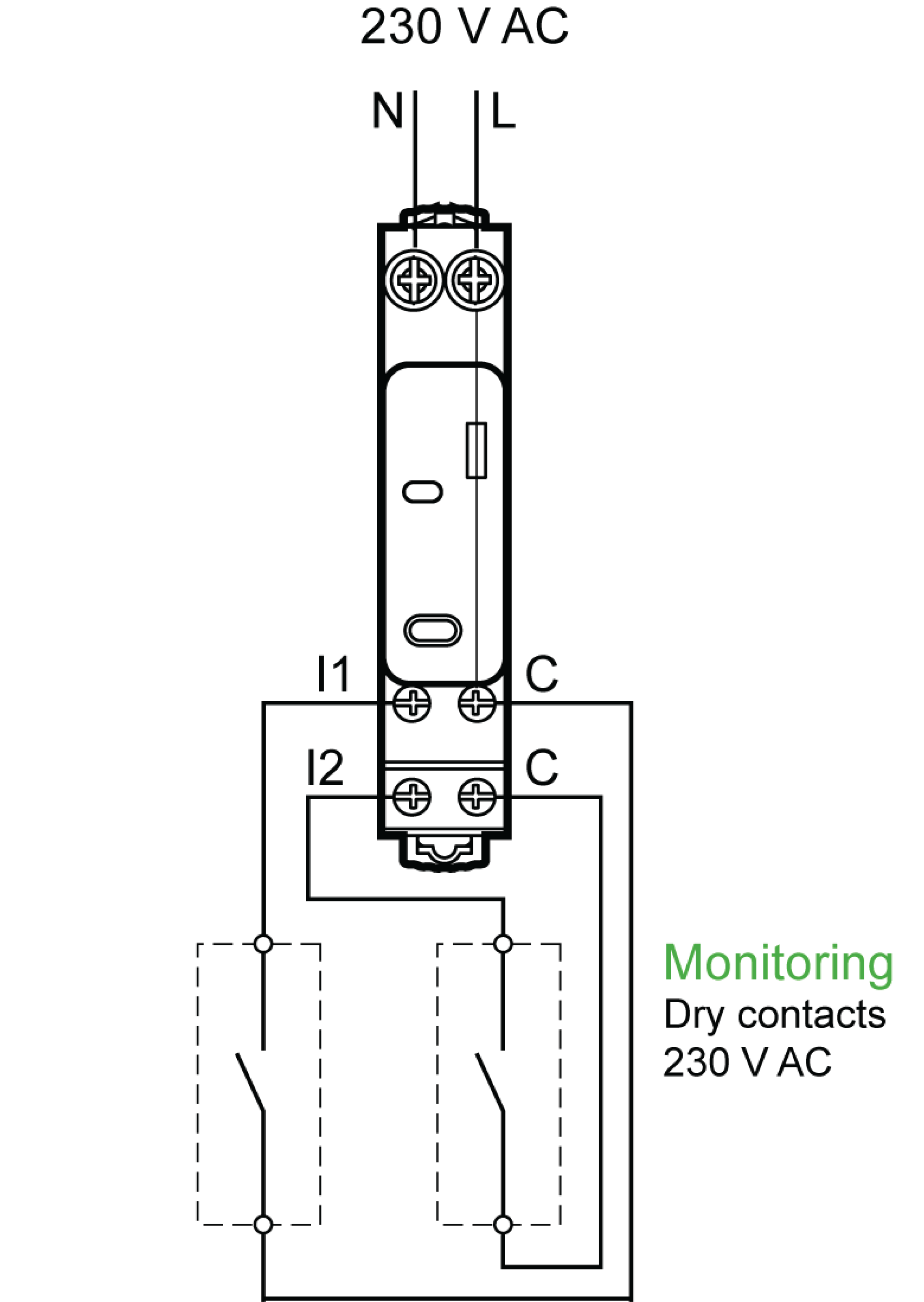

Status monitoring alone is achieved with PowerTag control 2DI 230 V module (reference A9XMC2D3).

With this solution, you can easily know the status of two contacts or achieve OF/SD daisy chain.

Commissioning and decommissioning are done through webpages.

NOTE: In case of communication loss, the push button is used for decommissioning (>240 s).

To commission or decommission the PowerTag control 2DI 230 V module, refer to Wireless Device Commissioning with Webpages or refer to EcoStruxure Power Commission Online Help.

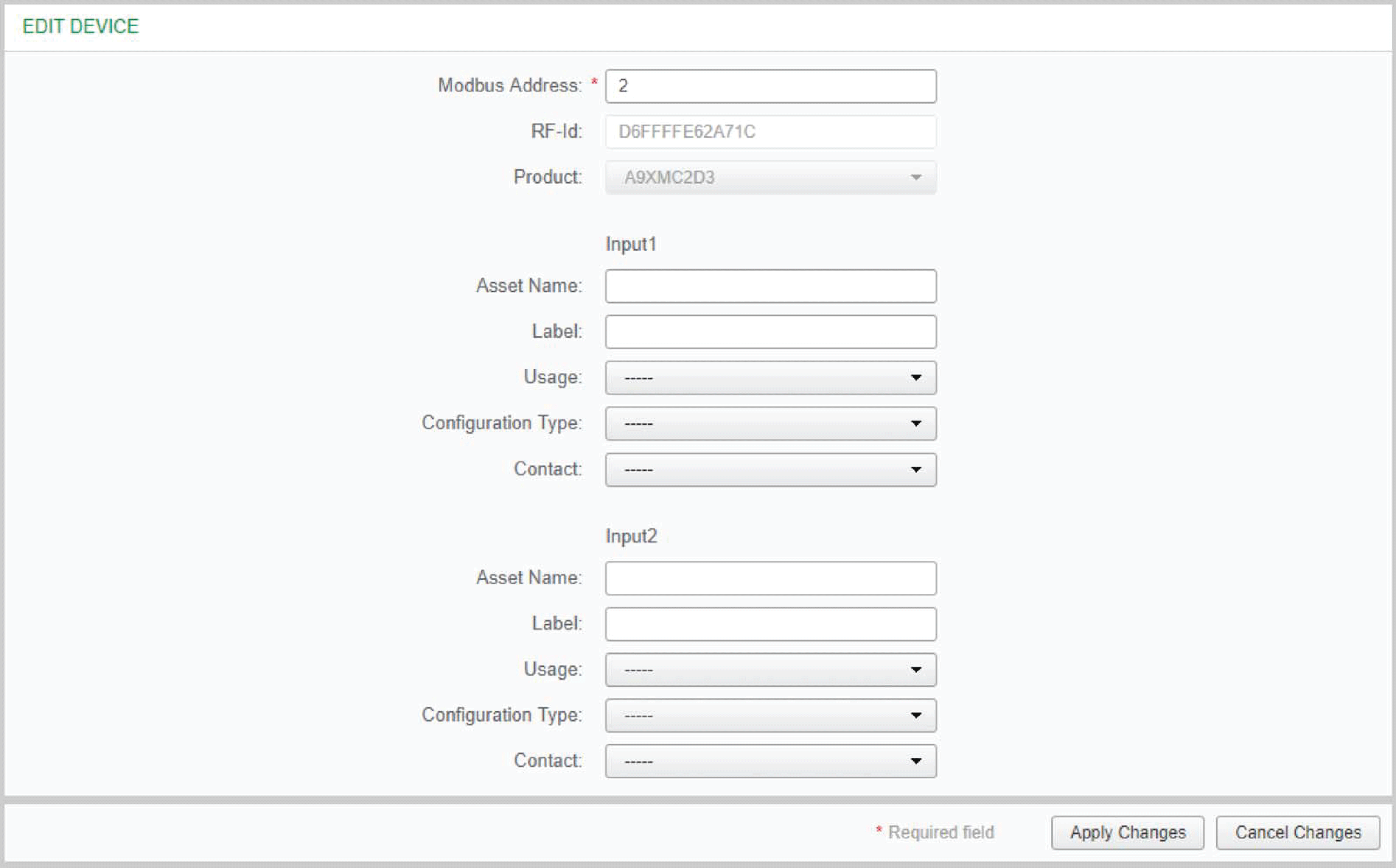

To configure the PowerTag control 2DI 230 V module, refer to the following procedure or EcoStruxure Power Commission Online Help.

Step	Action
1	Click Start Scanning to discover the wireless devices connected to the PowerTag Link gateway. Result: Displays the discovered wireless devices and assigns Modbus address to each device.
2	Select any wireless device and click the pencil icon to modify the configuration of the selected wireless device.
3	Enter the Asset Name of the Input 1.
4	Enter the Label of the Input 1.
5	Select the Usage from the drop-down list.
6	Select the Configuration Type from the drop-down list.
7	Select the Contact type from the drop-down list.
8	Repeat these actions for the Input 2.
9	Click Apply Changes to save the settings. Click Cancel Changes to revert the settings.
