Fields to Support Display

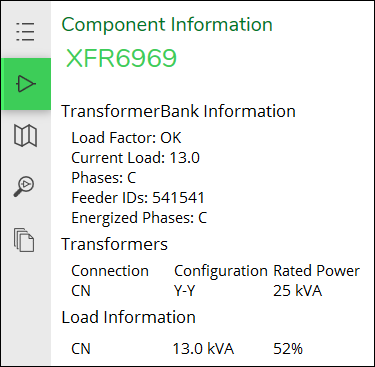

The Component Information pane displays attributes for selected components.

IMPORTANT: If an attribute is not available or is null, the application does not display it. In other words, while it is generally helpful to map as many of the attributes below as possible to assist the designers, they are not all required for the application to work.

During your specification gathering meeting, team members from your company and your implementation team meet to discuss mapping your equipment specs to the Designer XI application. So, be prepared to provide the location of the following:

Electric

Circuit Breaker:
- Breaking current
- Gang operated
- Rated current
- Type
Conductor:
- Cable resistance (ohms per kilometer)
- Manufacturer
- Model
- Rated current
Electric Network Component:
- Manufacturer
- Model
- Type
Fuse:
- Breaking current
- Rated current
- Type
Guy:
- Description
- Name
- Manufacturer
- Model
Pole:
- Class
- Description
- Height
- Manufacturer
- Material
- Model
Riser:
- Description
- Height
- Name
- Manufacturer
- Material
- Model
Service Point:
- Load profile (a category to summarize the average power drawn by the service point)
Surface Structure:
- Height
- Length
- Manufacturer
- Model
- Type
- Width
Switch:
- Rated current
Transformer:
- High side connection
- Low side connection
- Primary winding rated power
- Rated kVA

Gas

Pipe
- Diameter
- Material
Valve
- ValveType
- Diameter
- Material
- NormalPosition
Fitting
- FittingType
- Diameter
- Material
Meter
- OperatingPressure
- Diameter
- Material
GasGenericPointComponent
- Manufacturer
- Model
- Type
