Recognized Label Fields for Design Styles

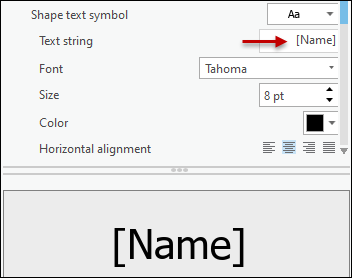

The tables below show what to type in the Text String field when creating a Design Style label. For example:
These tables include all the recognized fields that can be used for labeling.
General
|
Type of Component |
Text String for the Label |
|---|---|
|
All Components |
[Type] |
|
[SpecType] |
|
|
[WorkFunction] |
|
|
All Components with a Facility ID |
[Name] |
|
Conduit |
[ConduitType] |
|
Components with Measured Length |
[MapLength] |
|
[MeasuredLength] |
|
|
Point Component Rotation |
[Angle] |
|
Work Locations |
[Number] |
Electric
|
Type of Component |
Text String for the Label |
|---|---|
|
Conductor |
[Material] |
|
[Feeder] |
|
|
[ConductorType] |
|
|
Energized Component |
[VoltageClass] |
|
[Energized] |
|
|
[PhaseCount] |
|
|
Switch |
[OpenPhases] |
|
Transformer |
[RatedkVA] |
Gas
|
Type of Component |
Text String for the Label |
|---|---|
|
Fitting |
[Diameter] |
|
[Material] |
|
|
[LocalizedMaterial] |
|
|
Pipe |
[Diameter] |
|
[Material] |
|
|
[LocalizedMaterial] |
|
|
Valve |
[Diameter] |
|
[Material] |
|
|
[NormalPosition] |
|
|
[LocalizedMaterial] |
