Wall Plates/Key Input Unit

SpaceLogic C-Bus provides a range of Key Input units.

Saturn
Saturn Zen

To upgrade Wall Plates/Key Input Unit firmware, click here

Unit Types

Category		Catalog Number	Unit Type	Description
Saturn	‘A’ Series	5082680	KEYB2A	2 Gang Saturn Key Input Unit
		5082GF
		5082J80
		5082PW
		5084680	KEYB4A	4 Gang Saturn Key Input Unit
		5084GF
		5084J80
		5084PW
		5086680	KEYB6A	6 Gang Saturn Key Input Unit
		5086GF
		5086J80
		5086PW
	‘E’ Series	E5082680	KEYB2A	2 Gang Saturn Key Input Unit
		E5082GF
		E5082PW
		E5084680	KEYB4A	4 Gang Saturn Key Input Unit
		E5084GF
		E5084PW
		E5086680	KEYB6A	6 Gang Saturn Key Input Unit
		E5086GF
		E5086PW
Saturn Zen	‘A’ Series	R5041ZB	KEYH1A	1 Gang Saturn Zen Key Input Unit
		R5041ZW
		R5042ZB	KEYH2A	2 Gang Saturn Zen Key Input Unit
		R5042ZW
		R5043ZB	KEYH3A	3 Gang Saturn Zen Key Input Unit
		R5043ZW
		R5044ZB	KEYH4A	4 Gang Saturn Zen Key Input Unit
		R5044ZW
	‘E’ Series	ER5041ZB	KEYH1A	1 Gang Saturn Zen Key Input Unit
		ER5041ZW
		ER5042ZB	KEYH2A	2 Gang Saturn Zen Key Input Unit
		ER5042ZW
		ER5043ZB	KEYH3A	3 Gang Saturn Zen Key Input Unit
		ER5043ZW
		ER5044ZB	KEYH4A	4 Gang Saturn Zen Key Input Unit
		ER5044ZW

To Upgrade Key Input Unit firmware, click here

The field informations to configure SpaceLogic C-Bus Saturn and Saturn Zen series are described as below:

Applications	This section displays the lighting applications supported by the Saturn and Saturn Zen series. Up to four lighting applications can be defined and then used throughout the configuration of the Saturn and Saturn Zen series each.
Keys Depending on the input unit selected, the number of keys will vary,	Profiles Enable Group Allows to create a new enable group By default, <unused> is selected. Click to create a new enable group Confirm OK once the profiles are edited	Profiles Enable Group	By default, <unused> enable group is selected. Click to edit the enable group name. Click to create a new enable group.
		Profiles Selection	Once the enable group is selected, one or all profile can be selected (profile 2, profile 3, profile 4). Profile 1 is selected by default and remains along with other profile selection.
		Disable All Keys	Select the check box to disable all the keys. No key functions will be working if set.
		Profile Name	Profile 1 is selected by default along with the chosen profiles. To edit the profile name, select the profile name and type the new one.
		Power Recovery	By default, profile 1 name will be selected.
	Profile	Allows the keys to change their behavior when triggered. Up to four profiles can be used. Profiles utilize different widgets to define alternate (or same) key behavior for each profile. All the profiles will be available. By default, profile 1 will be selected.
	Key Each keys can have max of 16 widgets created in it.	Widget Displays the selected widget and application for a particular key. Depending on the application chosen the key property differs.	Widget: Can choose widgets ranging from 1–16. Click drop-down next to the widget to select the application Click to add new widget. Click to remove the widget.
		Function	Click here for more details
		Group	Select any existing group or create new using , or edit group name using Across all widgets in a group, the group address remains the same
		Ramp Rate	Ramp rate can be set from instant to max 17 minutes.
		Indicator	Indicator Assignment	Any of the 16 widget can be assigned to the indicator.
			Indicator On Color	Indicator color can be set to: Off 8 different colors 2 User-defined Dynamic (using C-Bus group to control) NOTE: is enabled only for user defined and dynamic changes
			Indicator Off Color	Indicator color can be set to: Off 8 different colors 2 User-defined 5 Dynamic (using C-Bus group to control) NOTE: is enabled only for user defined and dynamic changes

The table below explains the details of widgets selected with its functions

Lighting	Function Allows to select different function available for selected application.	Select one of the below timer functions:
		Toggle On Off Preset Toggle Dimmer Toggle Dimmer Down Toggle Dimmer Up Memory Toggle Dimmer Memory Toggle Dimmer Down Memory Toggle Dimmer Up Dimmer Down		Dimmer Up Down Up Soft Down Soft Up Nudge Down Nudge Up Bell Press Custom 1 Custom 2 Custom 3 Custom 4
		If custom function is selected, files can be imported and exported to software using and respectively.
	Group	Select any existing group or create new using ,or edit group name using Across all widgets in a group, the group address remains the same
	Ramp Rate	Ramp rate can be set from instant to max 17 minutes
	Restore Level	By default, restore level is set to 0%.
Timer	Function Allows to select different function available for selected application.	Select one of the below timer functions: Retrigger Timer Toggle Timer Delay Timer Pulse Timer
	Timer Level	Allows to adjust timer level to a max of 100% (255) to min of 1% (1)
	Ramp Rate	Allows to set ramp rate between 4 sec to 17min
	Duration	Set the duration for the timer
	Expiry Level	By default, set to 0%. Expiry level value varies from 0 - 100%
	Expiry Ramp Rate	By default, expiry ramp rate is set to ‘instant’. The values vary from 4 seconds to 17 minutes
	Enable Timer Flash	Select the check box to enable indicator status. By default, it is enabled.
	Restore Level	Assigned restore level is common across widgets with the same group which varies from 0 to 100%
Shutter Relay	One of the following shutter relay functions can be selected: Shutter Toggle Shutter Open/Stop Shutter Close/Stop Shutter Open Shutter Close Shutter Stop
Enable	One of the following enable functions can be selected: Unused (Default) Toggle On Off Preset Preset Level: Allows to set the preset level between 0 - 100%
	Enable Group	Select any existing group or create new using , or edit group name using
	Restore Level	Assigned restore level is common across widgets with the same group which varies from 0 to 100%
Fan Cycle	Trigger Group	Select any existing group or create new using , or edit group name using
	Action Selector	Select any existing action selector or create new using , or edit action selector name using
Scene	One of the following scene functions can be selected: Scene Toggle (Default) Scene Set Scene Off Scene Off/Down Scene On/Up
	Scene Label	Select the scenes between 1 - 8 Click for scene manager
	Ramp Rate	Allows to set ramp rate between 4 sec to 17min This parameter is applicable only for scene functions Scene Off/Down and Scene On/Up
	Trigger Group	Select any existing group or create new using , or edit group name using
	Action Selector	Select any existing action selector or create new using ,or edit action selector name using
	Enable Scene Repair	Enable the scene repair by checking the check box. Enabling the scene repair will maintain the scene status if all the items in the scene, match the current live state.
Sequence	One of the following scene functions can be selected: Sequence Toggle (Default) Sequence Start Sequence Off Sequence Reverse Toggle Sequence Reverse Off Sequence Stop
	Sequence Label	Select the sequence between 1 - 8 Click for sequence manager
	Trigger Group	Select any existing group or create new using , or edit group name using
	Action Selector	Select any existing action selector or create new using ,or edit action selector name using
	Use Delay For Off	Check the check box to enable delay off.
Audio	Function Allows to select different function available for selected application.	Select one of the below audio functions:
		Volume Up Volume Down Volume Cycle Treble Up Treble Down Treble Cycle	Bass Up Bass Down Bass Cycle Balance Left Balance Right Balance Cycle	Next Source Previous Source Preset Source Dynamic 1 Dynamic 2
	Parameters	Zone Zones available in the range of 0 to 23. Ramp Rate. Ramp rate ranges from Instant, 4 sec to 17 mins.	These parameters are applicable for below functions:
			Volume Up Volume Down Volume Cycle Treble Up Treble Down Treble Cycle	Bass Up Bass Down Bass Cycle Balance Left Balance Right Balance Cycle
		Zone Zones available in the range of 0 to 23.	These parameters are applicable for below functions: Next Source Previous Source Dynamic 1 Dynamic 2
		Zone Zones available in the range of 0 to 23. Source Zones with available levels ranging from 0 to 7.	These parameters are applicable for below functions: Preset Source
Multi-Toggle	Allows to toggle multiple groups in an application.
	Application Each key can have 4 applications	By default, Lighting application is selected.
	Groups Each key has 8 Groups	Allows to select available groups in selected lighting application. Allows to select available groups in selected enable application.
Linked	Allows add conditional logic behavior to a button press of a Key. IMPORTANT: Linked widget will be disabled/hidden in the list when: a linked widget cannot be selected/defined for the first /main widget of a key. selecting a widget which is already defined as a Linked widget. selecting a widget number which is already configured as a “Linked” widget type and is assigned to any other Key. Linked widget will be enabled in the list when: an additional (second or more) widget added to the Key (must add another widget to the key to use linked widget). any widget number is already configured as a “Linked” widget type and is not assigned in any other key. NOTE: An additional (second or more) widget added to the Key, widget already assigned to a Key cannot be changed/modified to a Linked widget. can only configure a widget which is not assigned. Once the Linked widget is selected in a key, the widget number or widget type cannot be modified. The Linked widget must be removed from the key and then added again.
	Control Widget	Widgets that are already configured/assigned to the current key are displayed and allowed for selection. While adding an additional widget to a key, and if the widget number selected is a control widget for an existing linked widget, then the associated linked widget also appears in the (to be added) key. Removing the first/main widget in a Key which is configured as a Control widget for a Linked widget in the same Key displays a confirmation dialogue to confirm the action. On selecting YES, both the Control and Linked widgets are removed from the Key. Confirm ‘Yes’ to save the changes in widget and to delete Linked widget. Confirm ‘No’ to perform no changes. Selecting an existing Linked widget for a Key, the Control widget property updates to reflect the first/main widget for that Key. The linked relationship between the Linked widget and the Control widget in all the keys and across all the profiles are maintained and displayed when: A linked widget is added to a key . A widget is changed/modified to a control widget. NOTE: Once a Control widget is selected, the Control selection cannot be modified. The Linked widget must be removed from the key and then added again.
	Linked Event	Linked Event options include: Control Widget Turns On Control Widget Turns Off Control Widget Timer Expiry
	Linked Action	Linked Action options include: Turn On Turn Off Preset Turn On and Start Timer		Turn Off and Start Timer Start Timer Trigger Event Enable Event
	Group	Allows to select among existing groups.
	Level/Expiry Level	Allows to set a level between 1 to 100%.
	Ramp Rate/Expiry Ramp Rate	Allows to set ramp rate between 4 sec to 17 min, by default its ‘instant’.
	Duration	Allows to set the duration in hh:mm:ss
	Disable link in this Profile	This Property is applicable for all the Linked widgets in the current profile. By default it is unchecked. Checking ‘Disable link in this profile’ will disable the Linked widget in the current key. The Control Widget continues to operate maintaining the Linked widget relationship. Property is disabled when profiles are not in use. IMPORTANT: The “Disable link in this Profile” property can be set only while using more than one profile in the device.
	Indicator Indicator Assignment The Indicator assignment property for the Key is displayed only in an enabled state widgets that are not configured as a Linked Widget for User selection. Linked Widgets are disabled (appear in a disabled state). If a valid widget is already defined for the Indicator Assignment property, then upon modification of the widget type, for that widget to a Linked widget type, the Indicator Assignment property updates and selects automatically the first/main widget for the Key. Indicator On Color Allows to set the indicator ‘On’ color Indicator Off Color Allows to set the indicator ‘Off’ color

Indicators	Indicator Application	Allows to select among the defined Active Brightness control group and Idle Brightness control group.
	Active Brightness	The Active Brightness can be equal to or greater than the Standby Brightness. By default set to 100%. If a group is assigned to the Active Brightness Control Group, then the start up level for that group is the value set here.
	Active Brightness Control Group	To control the active brightness, select the group By default, <unused> is selected. Click to edit the group and to create new group.
	Standby Timeout	The minimum value of 0 sec disables the Standby Timeout for this device.
	Standby Brightness	The Standby Brightness can be equal to or less than the Active Brightness. By default set to 100%. If a group is assigned to the Standby Brightness Control Group, then the start up level for that group is the value set here.
	Standby Brightness Control Group	To control the idle brightness, select the group By default, <unused> is selected. Click to edit the group and to create new group.
	Nightlight Options	Profile	Allows the keys to change their behavior when triggered. Up to four profiles can be used. Profiles utilize different widgets to define alternate (or same) key behavior for each profile. All the profiles will be available. By default, profile 1 will be selected.
		Enable Nightlight	Check the check box to enable nightlight.
		Ignore First Key Press	This field is enabled only when ‘Enable Nightlight’ is checked.
		Nightlight Indicator Color	Nightlight Indicator color can be set to: Off 8 different colors 2 user defined 5 Dynamic (using C-Bus group to control) NOTE: is enabled only for user and dynamic changes
		Nightlight Color Control Group Uses a C-Bus group to control the nightlight. Level 0: Group is off Above Level 0: Group is on	By default, <unused> is selected. Click to edit the group and to create new group.

Corridor Linking	Application	Select the application to be applicable for corridor linking.
	Link Group	A common group address is assigned to all units sharing the same common area. By default, <unused> is selected. Click to edit the group and to create new group.
	Corridor Group	The group address that is used for the common area that is adjacent to the office. By default, <unused> is selected. Click to edit the group and to create new group.
	Office Group	The group address that is used for the Office which is adjacent to the common area. By default, <unused> is selected. Click to edit the group and to create new group.
	Corridor Timer	Allows to set the timer for corridor timeout. By default, 300s. Min: 60s

Error Reporting	Device ID	This field displays the unique device ID for the device. NOTE: The Device ID is for the entire device and is as same for Measurement.
	Mode Control Group	This field allows to add an enable group (0–254).
	Regular Reporting	This field configures the Error Reporting mode of the Dimmers into one of modes: Disabled (Triggered only) All Errors, most recent and most severe All Errors, most recent only Minimum Errors, most recent only Minimum Errors, most recent and most severe
	Regular Reporting Interval	This field is used to select the time interval period between the completion of a regular report and beginning of the next report in Always On, Most recent only and Always On, Most recent and most severe modes. By default, the interval is 30 minutes Regular reporting interval is enabled for all others except the Trigger Only mode.
	Trigger Group	This field contains a Trigger Group to trigger an error reporting event for any of the three error reporting modes. When a Trigger group is created, resend and acknowledge action selector are displayed. The Resend Action Selector is set to send all errors and Acknowledge Action selector is set to acknowledge all errors.
	Destination Network	This field contains the destination C-Bus network to which the key units routes the error reporting messages. This allows the error messages to be sent to a remote C-Bus network for central monitoring if it’s not the local network
	Advanced	C-Bus Voltage Warning Set Threshold	By default, “Disabled “ is selected The value selected must be less than the “C-Bus Voltage Warning Clear Threshold” value selected. If the “C-Bus Voltage Warning Clear Threshold” is "Disabled", then setting a value here will also set the “C-Bus Voltage Warning Clear Threshold” value to (current C-Bus Voltage Warning Set Threshold value + 1 V).
		C-Bus Voltage Warning Clear Threshold	By default, “Disabled “ is selected. The value selected must be greater than the “C-Bus Voltage Warning Set Threshold” value selected. If the “C-Bus Voltage Warning Set Threshold” is "Disabled", then setting a value here will also set the “C-Bus Voltage Warning Set Threshold” value to (current C-Bus Voltage Warning Clear Threshold value - 1 V).
		C-Bus Voltage Critical Set Threshold	By default, “Disabled “ is selected. The value selected must be less than the “C-Bus Voltage Critical Clear Threshold” value selected. If the “C-Bus Voltage Critical Clear Threshold” is "Disabled", then setting a value here will also set the “C-Bus Voltage Critical Clear Threshold” value to (current C-Bus Voltage Critical Set Threshold value + 1 V). If the “C-Bus Voltage Warning Set Threshold” has a value set (other than "Disabled"), then the value selected must be less than (current C-Bus Voltage Warning Set Threshold value).
		C-Bus Voltage Critical Clear Threshold	By default, “Disabled “ is selected. The value selected must be greater than the “C-Bus Voltage Critical Set Threshold” value selected. If the “C-Bus Voltage Critical Set Threshold” is "Disabled", then setting a value here will also set the “C-Bus Voltage Critical Set Threshold” value to (current C-Bus Voltage Critical Clear Threshold value - 1 V)
		Unit Over Temperature Set Threshold	This field is a combo box which is by default set to 70° C. The “Unit Over Temperature Set Threshold” property increments by 1° C with a range of 1° C - 80° C.
		Unit Over Temperature Clear Threshold	This field is a combo box which is by default set to 65° C. The “Unit Over Temperature Clear Threshold” property increments by 1° C with a range of 0° C - 79° C.

Measurement	Device ID	This field displays the unique device ID for the device. NOTE: The Device ID is for the entire device and is as same Error
	Request Trigger Group	Select the trigger group for measurement application. By default, <unused> is selected. Click to edit the group and to create new group.
	Destination Network	This field contains the destination C-Bus network to which the key units routes the error reporting messages. This allows the error messages to be sent to a remote C-Bus network for central monitoring if it’s not the local network
	Temperature Offset	Allows to set the device to offset between 25 °C to 25 °C
	Sensor Stabilization Delay	The Sensor Stabilization Delay is applicable to both the onboard temperature and humidity sensors only upon device power up. The device will not send any Measurement data or raise any alarms until the delay time period has elapsed. Sensor Stabilization Delay is set in H:M with 1 hour increment for hours and 1 minute increment for minutes. Maximum delay value that can set is 4:14
	Temperature Broadcast	Broadcast Interval Allows to set the interval to broadcast temperature	By default ‘Do Not Broadcast’ is selected. Broadcast interval can be set between 10 seconds to 40 minutes.
	Temperature Broadcast	Broadcast on Change Threshold	By default ‘Disabled’ is selected. Broadcasts if the unit crosses the set threshold.
	Humidity Broadcast	Broadcast Interval	By default ‘Do Not Broadcast’ is selected. Broadcast interval can be set between 10 seconds to 60 minutes.
		Broadcast on Change Threshold	By default ‘Disabled’ is selected. Broadcasts if the unit crosses the set threshold
		Profile	Allows the keys to change their behavior when triggered. Up to four profiles can be used. Profiles utilize different widgets to define alternate (or same) key behavior for each profile. All the profiles will be available. By default, profile 1 will be selected.
		Alarm Application	Select the application for alarm.
	Temperature Alarms	Enable High Temperature Alarm	Select the check box to enable alarm on unit’s high temperature.
		Alarm Group	Select the group for alarm. By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group	Select the enable group . By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group Restore	This field is enabled only when Enable group is been selected. Enable group can be restored in one of the following modes: All events disabled (Default) Only On events enabled Only Off events enabled All events enabled
		Alarm Set Threshold	Set the alarm set threshold between 46 - 60 °C
		Alarm Clear Threshold	Set the alarm clear threshold between 0 - 49 °C
		Enable Low Temperature Alarm	Select the check box to enable alarm on unit’s low temperature .
		Alarm Group	Select the group for alarm By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group	Select the enable group By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group Restore	This field is enabled only when Enable group is been selected. Enable group can be restored in one of the following modes: All events disabled (Default) Only On events enabled Only Off events enabled All events enabled
		Alarm Set Threshold	Set the alarm set threshold between 0 - 14 °C
		Alarm Clear Threshold	Set the alarm clear threshold between 11 - 60 °C
	Humidity Alarms	Enable High Humidity Alarm	Select the check box to enable alarm on unit’s high humidity
		Alarm Group	Select the group for alarm. By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group	Select the enable group By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group Restore	This field is enabled only when Enable group is been selected. Enable group can be restored in one of the following modes: All events disabled (Default) Only On events enabled Only Off events enabled All events enabled
		Alarm Set Threshold	Set the alarm set threshold between 85 - 100 %RH
		Alarm Clear Threshold	Set the alarm clear threshold between 0 - 85 %RH
		Enable Low Humidity Alarm	Select the check box to enable alarm on unit’s low humidity
		Alarm Group	Select the group for alarm. By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group	Select the enable group By default, <unused> is selected. Click to edit the group and to create new group.
		Enable Group Restore	This field is enabled only when Enable group is been selected. Enable group can be restored in one of the following modes: All events disabled (Default) Only On events enabled Only Off events enabled All events enabled
		Alarm Set Threshold	Set the alarm set threshold between 0 - 10 %RH
		Alarm Clear Threshold	Set the alarm clear threshold between 15 - 100 %RH

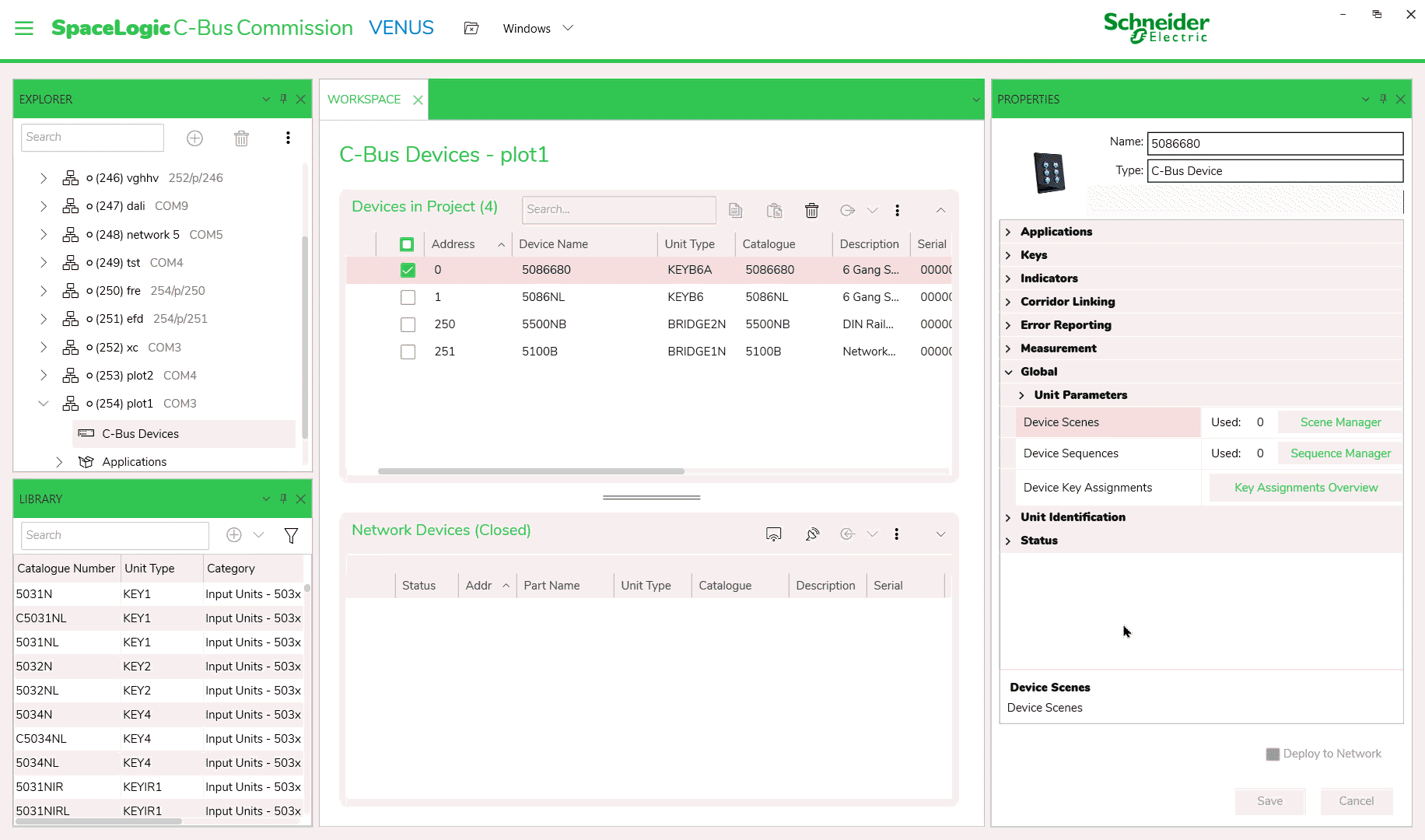

Global	Unit Parameters	Status Request Interval	Allows to set minutes and seconds for status request interval
		Device Idle Time out	Allows to set minutes and seconds for status request interval
	Device Scenes	Displays the number of scenes used Scene Manager
	Device Sequences	Displays the number of sequence used Sequence Manager
	Device Key Assignments	Key Assignment Overview
Unit Identification	Unit Type	The Unit Type field contains the unit type of the device
	Catalogue Number	The Catalog Number field contains the catalog number related to the unit type
	Firmware Version	The Firmware Version field shows the version number of the C-Bus interface firmware which exists on the physical network or which has been assigned to a logical representation of the unit in the database
	Part Name	The Part Name field contains the part name which is stored in the unit hardware, which can be modified
	Unit Address	This field displays the unit address assigned to the device
	Serial Number	The Serial number field contains the serial number which exists on the physical unit
	Tag Name	The Tag Name field contains the name that user can give to the logical representation of the unit. This name can be up to 32 characters long and is stored in the project database only
	Notes	The Notes field contains a location to add notes about the unit which is stored in the project database only
Status These status will be displayed only when the unit is live	C-Bus Voltage (V)	Displays the C-Bus Voltage
	Unit Humidity (% RH)	Displays Unit’s Humidity
	Unit Temperature (°C)	Displays Unit’s Temperature only when the Sensor Stabilization Delay time period is elapsed.

Once configuring relays is completed Save the changes.

Scene Manager

The Scene manager allows to create, edit and manage scenes for selected C-Bus device.

New scene items can be added to scenes using any of the available C-Bus group applications 1 to 4 defined for this device.

Some of the functions of scene manager is as demonstrated as below:

To Edit the group name:

Select the group and click Edit group.
Enter the new group name.

Clear Scene: Clear scenes clears all the scene items in the list irrespective of being selected.

Remove Scene: Remove scenes removes only the selected scene items from the list .back to the group list. (can also remove scene by selecting scene and clicking )

Sequence Manager

The Sequence manager can create, edit and manage sequences for the selected C-Bus device. New sequence items can be added to sequences using the available Action types and configured separately.

Some of the functions of sequence manager is as demonstrated as below:

Clear Sequence: Clear sequence clears all the scene items in the list irrespective of being selected.

Remove Sequence: Remove sequence removes only the selected scene items from the list (can also remove scene by selecting scene and clicking )

Action Types	Sequence Items
Delay	Time: Allows to set the delay in M:S
Lighting	Group: Allows to select from defined application.	Level: Allows to set the level value Setting the Level value will automatically update the Percentage value.	Percentage: Setting the Percentage value will automatically update the Level value.	Ramp Rate: Allows to set the ramp rate between 4-17 min. By default it is instant.
Trigger	Trigger Group: Allows to select from available Trigger groups in Application.	Action Selector: Allows to select from available Action Selectors in selected Trigger group.	—
Enable	Enable Group: Allows to select from available Enable groups in Application.	Value: Allows to select from available Enable Values in selected Enable group.
Security	Arm Mode The different arm modes are: Away mode Night (home) mode Day mode Vacation mode Highest possible
Lighting Label	Label: Allows to define max. 8 labels, edit label name and duplicate the labels.	Groups: Allows to select from defined application.	—	Language: English (By default and the only language).	Variant: By default has value 1, and ranges from 1 to 4.
Scene Trigger Label		Trigger Group: Allows to select from predefined Trigger Group, or add a new by editing the name.	Action Selector: Allows to select from predefined Action Selector, or add a new by editing the name.
Audio	Zone: Zones available in the range of 0 to 23.	Action: Allows to choose action between:	Set Volume to Level Provided.	Volume: Allows to set volume between 0 –100%.	Ramp Rate: Ramp rate ranges from Instant, 4 sec to 17 mins.
			Set Source to source Provided.	Source: Zones with available levels ranging from 0 to 7.
Media Transport	Media Link Group: Address selection range limited to 0 to 31.	Action: Allows to choose action between: Set Power Set Shuffle Set Repeat Set Motion Set Category: Value ranges from 0 - 127. By default, value is 0. Set Selection: Value ranges from 0 - 32767. By default, value is 0. Set Track: Value ranges from 0 - 16777215. By default, value is 0.		To: Allows to choose operation for selected action from the below options:
				Power Off Power On Shuffle Off Shuffle On Repeat Current Repeat Off	Repeat Track Stop Play Pause Resume

Key Assignment Overview

The Key Assignments Overview window displays a high-level view of the Widget/Function to Key mapping per Profile.

Window allows to select each profile as desired (1 to 4).
The key layout of the window displays the list of keys in the order of 1 to 6 from left to right, and then top to bottom.

NOTE: Each key has a list of widget summary depending on the widget type.

Widget Type	Functions	Properties	Content
Lighting	All	Widget Type Function Group	Name of Widget Type Name of Function (All Functions) Group as configured in Widget (by name)
Timer
Shutter Relay
Enable
Fan Cycle
Audio
Linked
Multi Toggle
Scene	All	Widget Type Function Trigger Group Action Selector	Name of Widget Type Name of Function (All Widget Functions) Trigger Group as configured in Widget (by name) Action Selector as configured in Widget (by name)
Sequence

If a key is configured with more than one widget, the key displays UP/DOWN arrows for the User to cycle through all the widgets configured to the key.

The widget configuration for all keys across all profiles is visible. By default, (if a key is not configured) the Key displays the “Lighting” widget type and “<Unused>” function with the following default properties:

Widget Type – “<Unused>”
Function – “<Unused>”
Group – “<Unused>”

The data/information displayed in the Key Assignments Overview dialogue window is read-only.
